Item specifics
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wireless
  • Technology: Digital
  • Camera Sensor type: CMOS
  • Power: DC15V 2A
  • Material: ABX
  • Zone Input: None
  • Access Control: None
  • Samrt Home Interface: No
  • Display Screen Size(inch): 3.5
  • Doorbell: Yes
  • Sensor Size(Inch): 1/3
  • Answering Mode: Telephone
  • Connection Method: Wireless
  • IP Camera Interface: No
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 65
  • Display Screen Type: Color
  • Model Number: 359MJ11
  • Camera: Color
  • Power: DC 15V
  • Resolution: 700
  • is_customized: Yes
Product Description

Free Shipping  3.5" TFT Wireless Video Door Phone Intercom Unlock Doorbell Home Security Camera Night Vision Visual Doorbell

Product Description:

I.An outdoor unit and battery power can work in two ways, battery life of more than six months. II. Full hands-free voice communication, voice clear and loud.

III. The portable handheld machine can be moved to any room in the house.

IV. Rechargeable applicable to 3-4-storey villa with a patio.

V. easy to install,

A. Product Features:

1. The video intercom function: when guests are coming, pressed the doorbell, free intercom voice clarity,

2. outdoor surveillance function: the door has a strange sound, touch, would provide a clear, safe and secure (outdoor unit connected to the power supply have this feature).

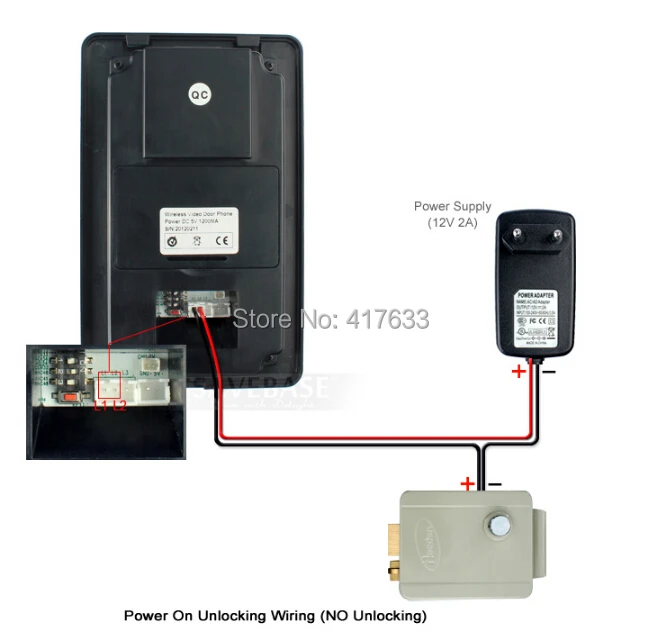

3. Indoor lock function: press the unlock button indoor, outdoor can be unlocked.

4. The photo archive function: the owner was not at home, a visitor. Just come to tap the doorbell, then automatic camera store, the owner came back after free inquiry. Miss any important meeting;

 B. Technical parameters:

1, 2.4G ISM digital public band: 2402 ~ 2483.5MHz.

2, the air transfer rate of up to 2Mbit / s, greatly shorten the transmission time space.

3,16-bit voice sampling accuracy, 8K sampling rate. DAC audio output, 16-bit output.

4, full-duplex voice mode.

5, image data transmission and voice transmission data synchronization.

6, analog camera, 3.5-inch screen, high-definition picture.

7, the image using MJPEG compression, one-way wireless up to 13 to 18 frames / sec.

8, the transmission power 16-20dBm, receiver sensitivity -90 ~ -100dBm.

9, communication from the open ground (without interference over distance) up to 300 meters.

10, the indoor unit of lithium-powered 3.7V, the outdoor unit power supply 5V, 1A, 12V customers unlock the power confession.

11, using AFH adaptive frequency hopping technology, while sharing 2.4G band work with Wireless LAN and Bluetooth devices.

12, randomly generated communication channels and synchronization channels, then generates 40Bits password.

13, in line with CE / CCC / FCC / R & NTTE / Rosh certification standards.

14, the machine has three door unlock mode.

15, door phone with night vision function.

C. Outdoor equipment:

Any place can be hand-held, can also be placed in the table

1. When an operating current of 200mA;

2. Sound maximum current of 240mA;

3. Working voltage 3.7V;

4. Using 3.7V lithium battery charger can also use the power supply. (Standard battery, a charger)

5. transmit power 20dBm;

6. The receiver sensitivity is -100dBm;

7. Voice Frequency Response: 300Hz ~ 3000Hz

8. speakerphone mode, you can adjust the volume

D. Door machine:

1. Power supply mode: 3.7V lithium battery, lithium battery can be charged, the machine with a battery, a charger

2. Working Current: 200mA door machine work

3. SNR: Speech> 55dB

4. Working temperature: -20degree + 70degree

5. Communication distance: open area> 250 m

Battery standby time of up to 180 days
