Item specifics
  • Model Number: KU-302VP-2/PW
  • is_customized: Yes
Product Description

2 in 1 power video lightning protection device/monitor lightning arrester / 12 v / 24 v / 220 v power source video



Product introduction:



Multi-function lightning protection device for monitoring system is tailor-made professional integrated multi-functional surge protector, mainly for power supply, video signal as one of the signals in the monitoring and control system of over voltage protection, from induced over-voltage, operating overvoltage and damage caused by electrostatic discharge, etc. Power supply, video dual function



Specification:

Insertion loss: 0.1 dB



Response time: < 10 ns



Working temperature: - 40 ~ + 85



The maximum discharge current: 10 ka

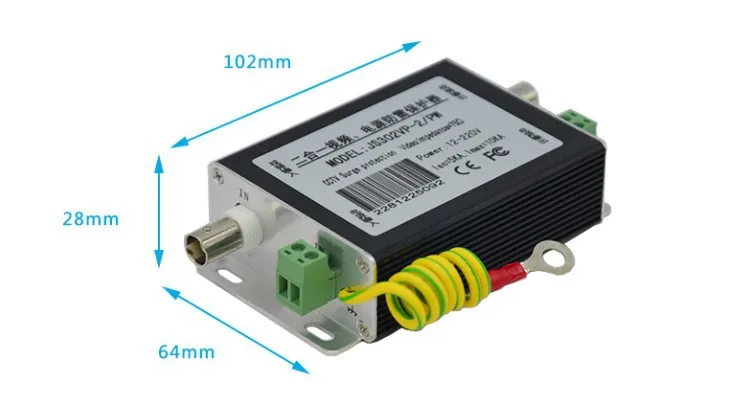

Overall dimensions (mm) : 102 * 60 * 27 mm



Continuous working voltage: 8 v



15 v limit voltage:



Maximum transmission rate: 20 MHZ



Enclosure protection grade: IP20



Packaging Details
  • Unit Type: lot (2 pieces/lot)
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 15cm x 8cm x 8cm (5.91in x 3.15in x 3.15in)
